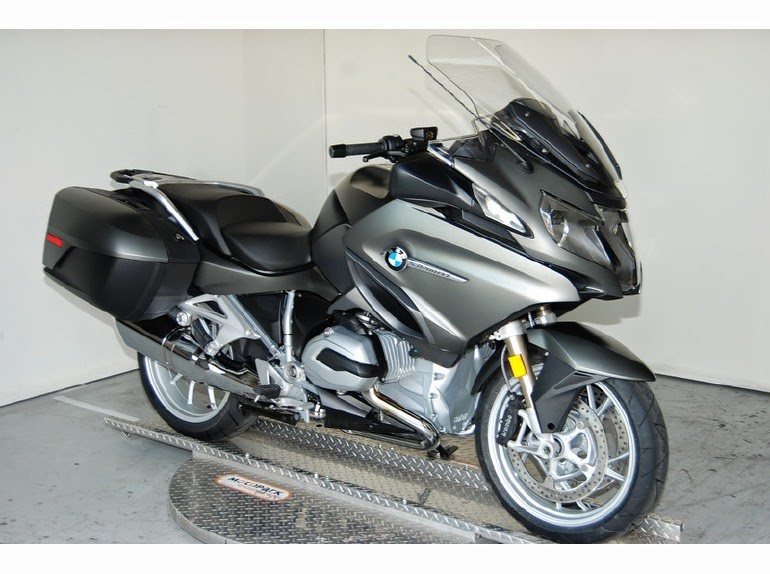

NEW 2014 BMW R1200RT

The 2014 BMW R1200RT features a completely new engine. The new boxer engine is the most significant change. It’s the same air- and liquid-cooled 1170cc unit found in the R1200GS, but now fitted with a heavier crankshaft and alternator to add powertrain smoothness while also making the bike harder to stall.

New bodywork with the power-adjustable windscreen is said to offer much better weather protection.

The main frame is stronger, for greater directional stability, and the rider triangle formed by the handlebars, seat and footpegs has been lowered nearly an inch (20mm) to make it much easier for a short rider’s boots to reach the ground.

Peak power is listed as 125 hp at 7,750 rpm, complemented by 92 pound-feet of torque at 6,500 rpm. This compares favorably to the air- and oil-cooled boxer in the 2013 BMW R1200RT, which produced a claimed 110 hp at 7,750 rpm and 89 pound-feet of torque at 6,000.

2014 BMW R1200RT Key Features

•Air/liquid-cooled twin-cylinder boxer engine with a displacement of 1,170 cc. Output 92 kW (125 hp) at 7,750 rpm, maximum torque 125 Nm (92 lb-ft) at 6,500 rpm.
•Crankshaft and alternator with increased centrifugal mass for even smoother engine running.
•Two riding modes (“Rain” and “Road”) plus Automatic Stability Control (ASC).
•Riding mode Pro with “Dynamic” riding mode and Hill Start Control as an option.
•Gear Shift Assistant Pro as an option for added comfort and dynamism when changing gear.
•New chassis with a continuous frame, more agile and comfortable.
•Semi-active suspension Dynamic ESA (Electronic Suspension Adjustment) as an option.
•New bodywork in more dynamic design, optimised comfort and aerodynamics.
•New, adjustable windshield for even better wind and weather protection.
•New headlight concept, LED daytime running light as an option.
•Multifunctional instrument cluster with large TFT colour display.
•BMW Motorrad Pro onboard computer offering a wide range of information.
•Innovative audio controls.
•New colours and optional extras and special accessories made to BMW Motorrad’s customary high standards of quality.

NEW  BMW R 1200 RT (2014 - PRESENT)
Engine and transmission
Displacement: Capacity 1,170 cc
Engine type: Air/liquid-cooled DOHC opposed twin, 8 valve
Compression: ratio 12.5 : 1
Bore n stroke: 101 mm x 73 mm
Rated output 125 bhp at 7,750 rpm
Max. torque 125 Nm at 6,500 rpm
Mixture control / engine management Digital Engine Management
Emission control Emission standard EU-3
Performance, Fuel Consumption
Maximum speed Over 125 mph
Fuel consumption per 100 km at constant 90 km/h 3.9 litres
Fuel consumption per 100 km at constant 120 km/h 5.3 litres
Fuel type Unleaded octane 95 RON
Electrical system
Alternator Alternator 540 W
Battery 12 V / 19 Ah, maintenance-free
Power transmission
Clutch Hydraulic slipper clutch
Gearbox Six-speed gearbox
Drive Shaft drive
Chassis / brakes
Frame 2-part tubular frame, engine partially load-bearing
Front wheel location / suspension BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut
Rear wheel location / suspension Cast aluminium single swing arm with Paralever; adjustable rear suspension
Suspension travel front / rear120 mm / 136 mm
Wheelbase: 58.4 inches (1,485 mm)
Castor 4.5 inches (116 mm)
Steering head angle 63.5°
Wheels Cast aluminum
Rim, front 3.50 x 17"
Rim, rear5.50 x 17"
Tyres, front 120/70 ZR 17
Tyres, rear  180/55 ZR 17
Brake, frontDual disc brake, floating brake discs, diameter 320 mm, four-piston fixed calipers
Brake, rearSingle disc brake, diameter 276 mm, double-piston floating caliper
ABS As StandardBMW Motorrad Integral ABS (part-integral)
Assistance systemsASC Automatic Stability Control
Dimensions / weights
Length 2,222 mm
Width (incl. mirrors) 985 mm
Height (excl. mirrors) 1,415 mm
Seat height, unladen weight 805 / 825 mm (high seat 830 / 850 mm, low seat 760 / 780 mm)
Inner leg curve, unladen weight 1810 / 1580 mm (high seat 1875 / 1915 mm, low seat 1740 / 1780 mm)
Unladen weight, road ready, fully fueled 274 kg
Dry weight Permitted total weight495 kg
Usable tank volume6.6 gallons (25.0 liters)
ReserveApprox. 1 gallon (4.0 liters)

Source: BMW Motorrad International
& Totalmotorcycle.com
